Key Specifications |
 |
| JetWave 2600 Series, IP67 Industrial Wireless Outdoor Access Point, is an ideal solution to long-distance surveillance seeking to extend wireless signal coverage.JetWave 2600 extends the wireless coverage to 40km. It supports different types of Wireless Multiple Access technologies, include CSMA and Intel TDMA. CSMA (Carrier Sense Multiple Access) is widely applied in most WLAN applications, however, its performance drop dramatically when the transmission distance increases. In addition to CSMA, Korenix implements Intel advanced TDMA technology for longer range wireless network without compromising the bandwidth, Users can choose CSMA or TDMA by the field requirement. With a default 23dbi panel antenna, the wireless extensibility can reach at least 40KM with guaranteed transmission quality. With JetWave, JetPoE and JetRock, Korenix provides the total solution to where wired infrastructures can not be reached, such highways, railways, dams, mines, harbors, wind powers and so on.
Key features of JetWave 2600 series: |
- |
With the Intel TDMA technology, JetWave 2600 Series covers communication range to at least 40KM with high transmission performance. |
- |
JetWave 2610 and JetWave 2620 implement 802.11a technology and use 5GHz band as the operating frequency. The JetWave 2640 adopts dual band 802.11a and 802.11g solutions. |
- |
The operation mode of JetWave series supports base station (AP), CPE, Relay, point-to-point and point-to-multipoint modes. Comprehensive wireless security is implemented by WEP, WPA and WPA2. |
- |
JetWave 2600 series can be powered by PoE technology, such as Korenix industrial PoE switches – JetPoE and JetRock. For outdoor installation, JetWave 2600 series features IP67 protection with -30 to 70°C operating temperature. |
|
Application Story: |

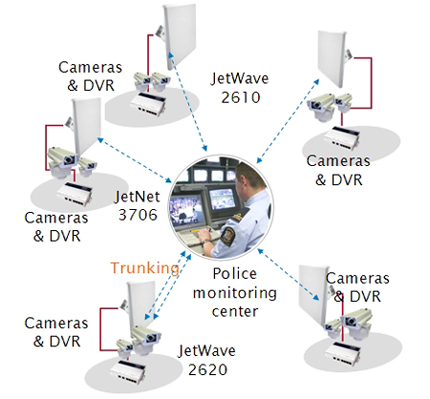

1. Wireless City Surveillance
|
 |
JetWave 2610 supports 802.1a WLAN recommended for its excellent performance of sending real-time video streams back to police control center in several kilometers.
|
|

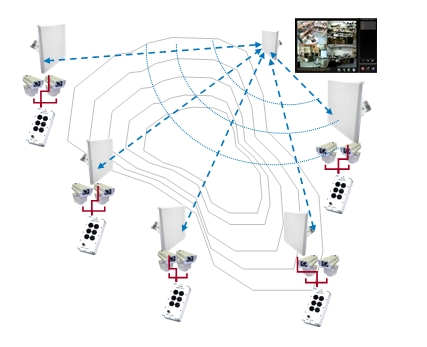

2. Open-pit Mine Surveillance
|
 |
In the hazardous environments such as open-pit mines, JetWave 2610, an 802.1a wireless AP, is ideal to deliver real-time video across the large open area.
|
|

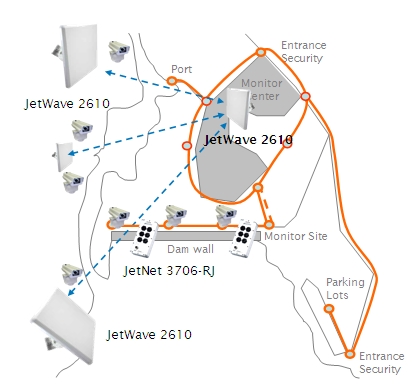

3. Dame Surveillance
|
 |
A dam authority in China installed plenty of cameras at the entrances, parking lots, ports, dam crest and the river side where WLAN is applied and JetWave2610 can withstand the humidity, and dusts.
|
|
For more information, please visit: www.korenix.com |
|
|
 |
|
